Compensation for the Fringing Effect
of the Sweep Plates
Have a look at parallel major Poloidal Sweep Plate properties with Compensation2 -- 2D Calculation

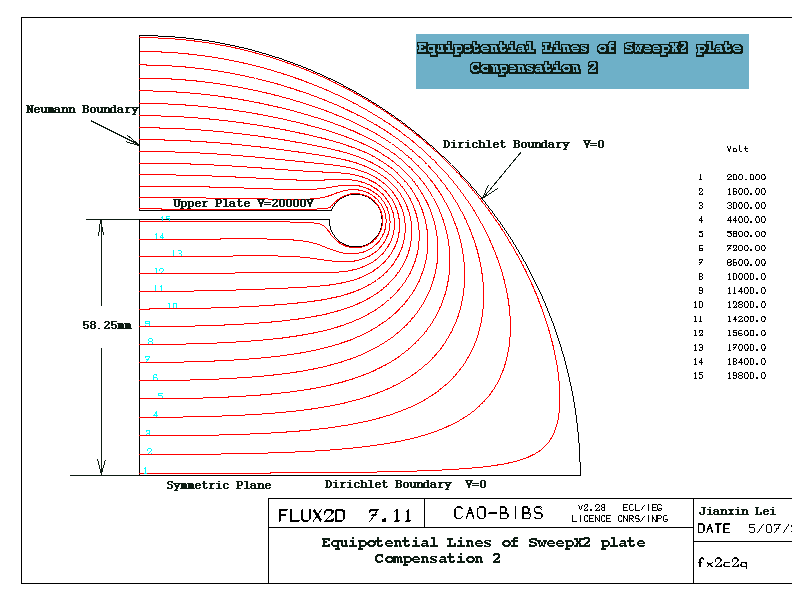

The following is plot of equipotential:

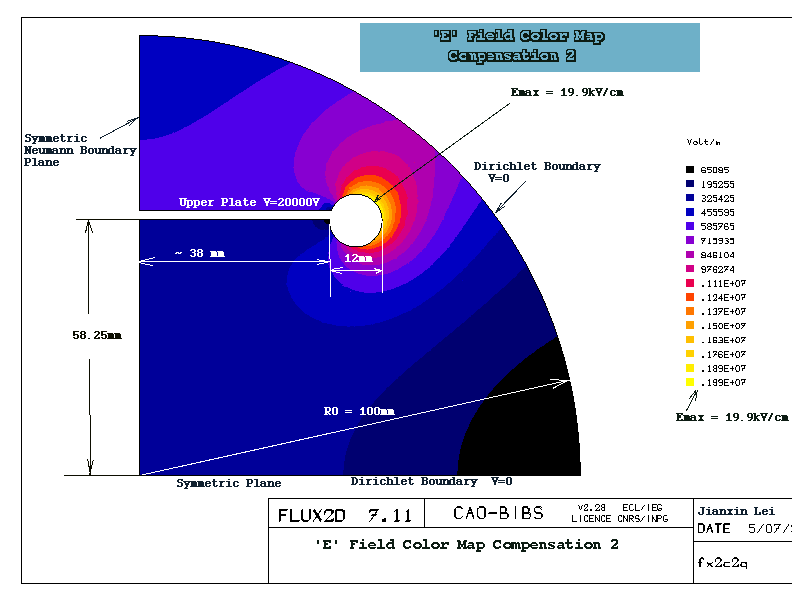

The following is plot of 'E' vector color map:

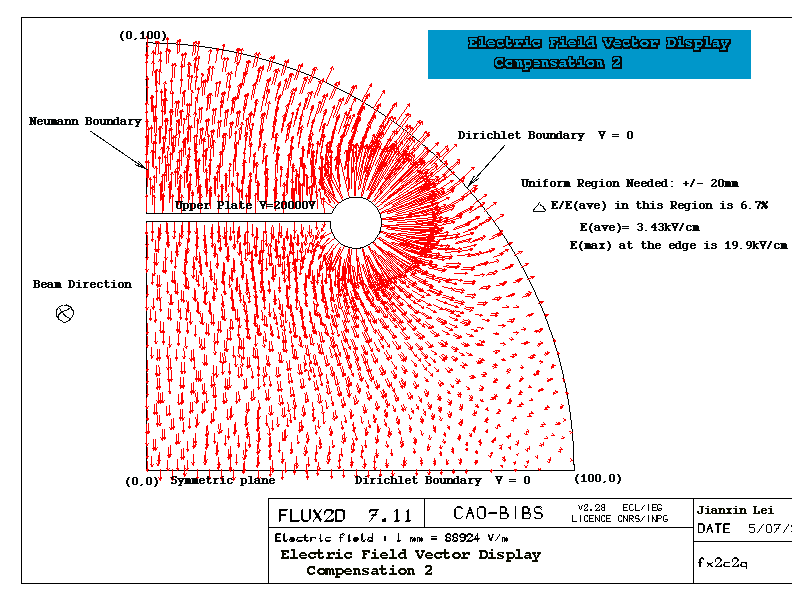

The following is plot of 'E' vector

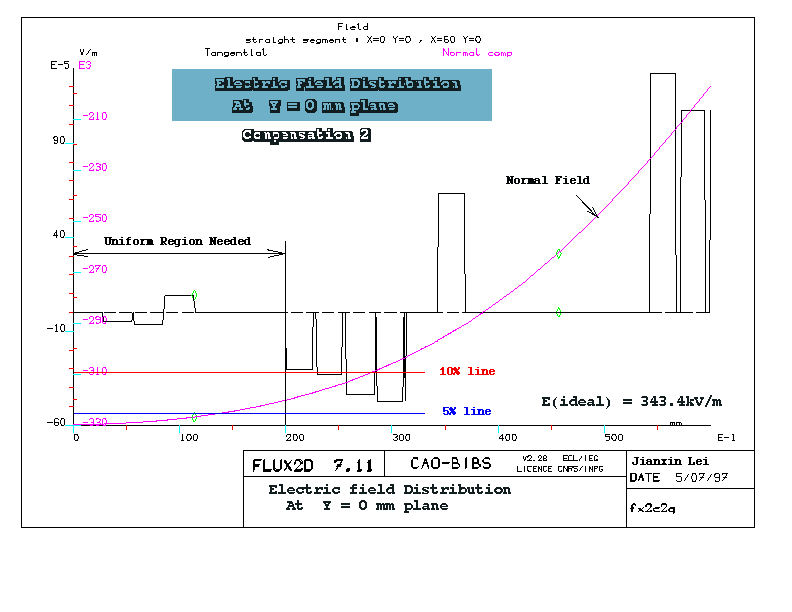

The following is plot of Normal @ Tangential 'E' field at H=0.0 cm above middle plane
The following is plot of Normal @ Tangential 'E' field at H=1.2 cm above middle plane
The following is plot of Normal @ Tangential 'E' field at H=2.4 cm above middle plane

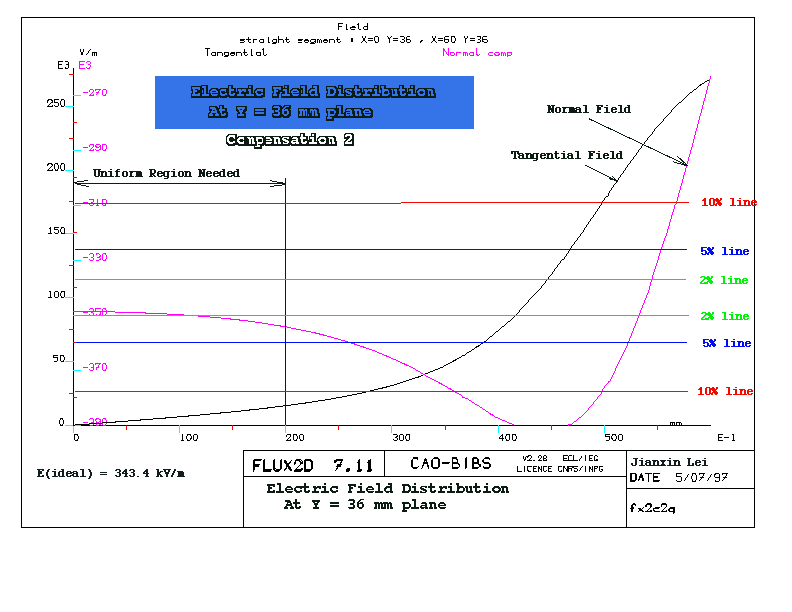

The following is plot of Normal @ Tangential 'E' field at H=3.6 cm above middle plane

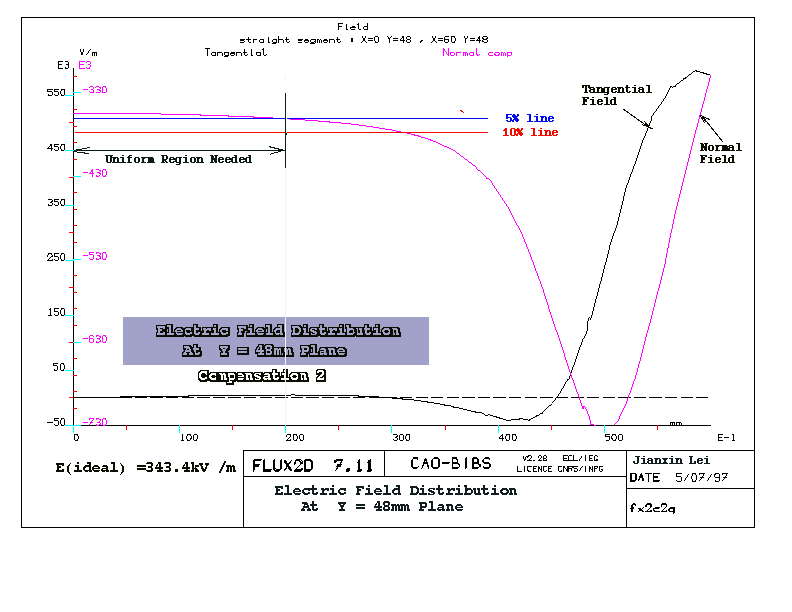

The following is plot of Normal @ Tangential 'E' field at H=4.8 cm above middle plane
